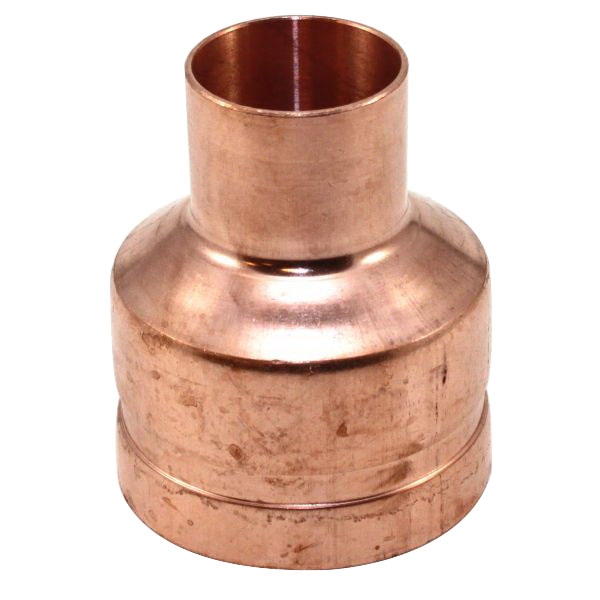

2 X 1 652 COPPER C X G CONC REDUCER

Concentric Reducer, Series/Model: Model 652, Nominal Size: 2 X 1 IN, Connection Type: Grooved X Cup, Material: Wrought Copper, Material Standard: ASTM B75, ASTM B152, Material Specification: UNS C89836, UNS C92200, Outside Diameter: 2-1/8 X 1-1/8 IN, Length: 2.7 IN, Maximum Pressure: 300 PSI, Industry Standards: UL And ULC Listed, ANSI B16.22, FM Approved, Other Physical Dimension: 0.91 IN Cup, Domestic/Import: Import

• Full-flow, standard radius copper fittings are supplied as either roll grooved wrought copper or bronze fittings
• Fitting pressure ratings equivalent to the pressure ratings of the joints consisting of a style 607 coupling, style 606 coupling or style 641 flange adapter and type of copper tubing
• Connects tubing provides change in direction and adapts sizes or components

• Brochure https://macombstage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/Victaulic_C024730PE9_Brochure.pdf
• Catalog https://macombstage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/Victaulic_A040010PHL_Catalog.pdf
• Instruction/Installation Manual https://macombstage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/Victaulic_C030150PE1_Instruction_Installation_Manual.pdf
• Specification Sheet https://macombstage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/Victaulic_F020610C00_Specification_Sheet.pdf
