1-1/2 X 1 50-SSLT S10 316SS GRVD CONC REDUCER

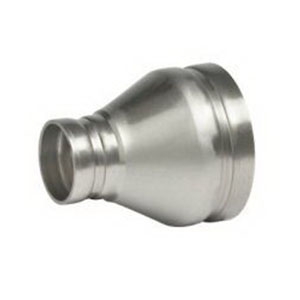

Victaulic Model 50SSLT SCH 10S 316 Stainless Steel Concentric Reducer, 1-1/2 X 1 IN, Grooved End
- Manufacturer: Victaulic Company
- Brand: Victaulic
- MGPN: 15010050SSLTCR
- MPN: FB29050X16
- UPC: 688304132315
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
Concentric Reducer, Series/Model: Model 50SSLT, Nominal Size: 1-1/2 X 1 IN, Connection Type: Grooved End, SCH 10S Schedule, Material: 316 Stainless Steel, Material Standard: ASTM A351/A351M Grade CF8M, Method Of Manufacturer: Cast, Outside Diameter: 1.9 X 1.315 IN, Length: 3-3/4 IN, Industry Standards: ANSI/NSF 61, Domestic/Import: Import
| Item Name | : | Concentric Reducer |
| Series/Model | : | Model 50SSLT |
| Nominal Size | : | 1-1/2 X 1 IN |
| Connection Type | : | Grooved End |
| Schedule | : | SCH 10S |
| Material | : | 316 Stainless Steel |
| Material Standard | : | ASTM A351/A351M Grade CF8M |
| Method Of Manufacturer | : | Cast |
| Outside Diameter | : | 1.9 X 1.315 IN |
| Length | : | 3-3/4 IN |
| Industry Standards | : | ANSI/NSF 61 |
| Domestic/Import | : | Import |
| Weight | : | 1.400 LB |
- Grooved stainless steel pipe fittings are made of SCH 10 type 316 stainless steel
- All stainless steel pipe fittings are provided with grooves for easy installation
- Pressure ratings for stainless steel fittings are equivalent to the pressure rating of the coupling when installed on stainless steel pipe of equal wall thickness
