2 VIC HP-70 PAINTED RIGID COUPLING W/E

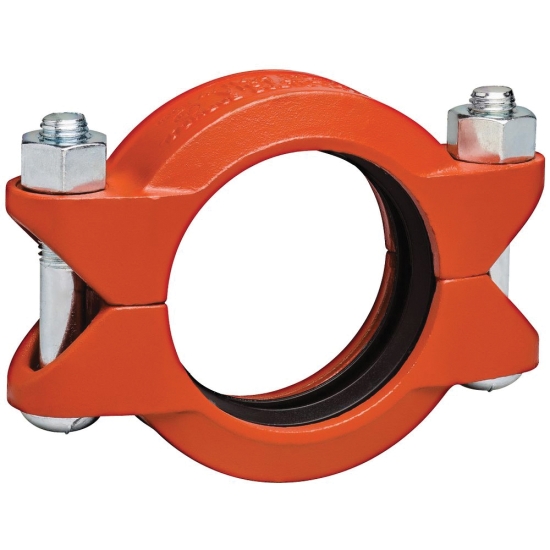

Victaulic Style HP-70 L020070PE1 Rigid Coupling With Grade E Gasket, 2 IN, Grooved, Ductile Iron, Orange Enamel Painted
- Manufacturer: Victaulic Company
- Brand: Victaulic
- MGPN: 200PHP70CE
- MPN: L020070PE1
- UPC: 688304451836
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
Victaulic Rigid Coupling With Grade E Gasket, Rigid Coupling With Grade E Gasket, Series/Model: Style HP-70, 2 IN Nominal, Connection Type: Grooved, Ductile Iron, Material Standard: ASTM A536 Grade 65-45-12, Finish/Color: Orange Enamel Painted, 2-3/8 IN Outside Diameter, 6-1/2 IN Length, 1000 PSI Maximum Pressure, -30 To 230 DEG F, Industry Standards: cULus Listed, FM And CE EN 10311 CPR (EU) No. 305/2011, Other Physical Dimension: 2 IN Width, 0.14 IN Allowable Pipe End Separation, (2) 5/8 X 2-3/4 IN Bolt/Nut, 3.63 IN Body Outside Diameter, 3.250 LB Weight
| Item Name | : | Rigid Coupling With Grade E Gasket |
| Series/Model | : | Style HP-70 |
| Nominal Size | : | 2 IN |
| Connection Type | : | Grooved |
| Material | : | Ductile Iron |
| Material Standard | : | ASTM A536 Grade 65-45-12 |
| Finish/Color | : | Orange Enamel Painted |
| Outside Diameter | : | 2-3/8 IN |
| Length | : | 6-1/2 IN |
| Maximum Pressure | : | 1000 PSI |
| Temperature Rating | : | -30 To 230 DEG F |
| Industry Standards | : | cULus Listed, FM And CE EN 10311 CPR (EU) No. 305/2011 |
| Other Physical Dimension | : | 2 IN Width, 0.14 IN Allowable Pipe End Separation, (2) 5/8 X 2-3/4 IN Bolt/Nut, 3.63 IN Body Outside Diameter |
| Weight | : | 3.250 LB |
- Heavy housing for high pressure service
- Pressures up to 1000 PSI/6895 KPA/69 BAR
