1/2 CS FLG W/FKM 84845

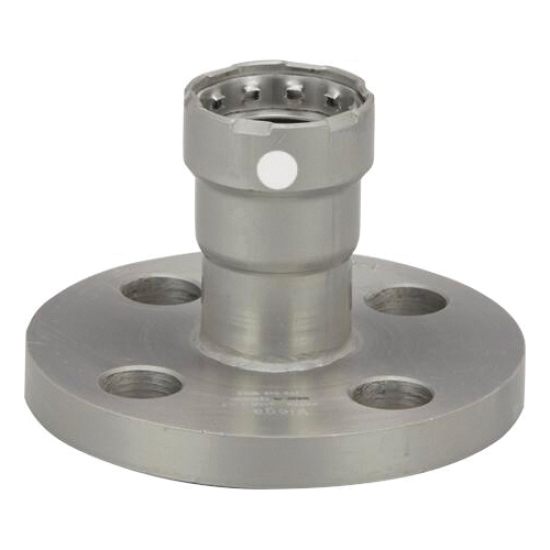

Viega MegaPress® Model 5959.5 84845 Flange, 1/2 IN, 3.54 IN OD Flange, Press, Class 150, 4 -Bolt
- Manufacturer: Viega LLC
- Brand: Viega
- MGPN: MEGAPRESS FKM CS FLG 1/2
- MPN: 84845
- UPC: 691514848457
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
Viega MegaPress FKM is the first and only clean, secure and efficient choice for joining 1/2 - 4 IN carbon steel pipe with an FKM sealing element. Meticulously engineered, it is suitable for renovations, repairs or installation on new carbon steel pipe systems. Viega MegaPress FKM can even be installed on non-combustible/flammable lines that are not completely shut down, eliminating the need to fully drain a system, and shortening repair and installation time. It is approved for use in hydronic heating, compressed air, fire protection, cooling water, marine applications and many more. Not approved for use with potable water.
Viega MegaPress® Flange, MegaPress®, Flange, Series/Model: Model 5959.5, Pressure Class: Class 150, 1/2 IN Nominal, 3.54 IN Flange Outside Diameter, Connection Type: Press, 0.46 IN Flange Thickness, Raised Face, 2-3/8 IN Bolt Circle Diameter, 4 Bolts, 2.58 IN Length, Carbon Steel, Material Standard: ASTM A420, Finish/Color: Zinc Nickel Coated, 200 PSI Maximum Pressure, 14 - 284 DEG F, Industry Standards: ASTM F3226, IAPMO/ANSI/CAN Z1117, Additional Specifications: Suitable For Use With: SCH 5 To SCH 40 Carbon Steel Pipes, Includes: EPDM Sealing Element, 1.400 LB Weight
| Sub Brand | : | MegaPress® |
| Item Name | : | Flange |
| Series/Model | : | Model 5959.5 |
| Pressure Class | : | Class 150 |
| Nominal Size | : | 1/2 IN |
| Flange Outside Diameter | : | 3.54 IN |
| Connection Type | : | Press |
| Flange Thickness | : | 0.46 IN |
| Face Type | : | Raised |
| Bolt Circle Diameter | : | 2-3/8 IN |
| Number Of Bolts | : | 4 |
| Length | : | 2.58 IN |
| Material | : | Carbon Steel |
| Material Standard | : | ASTM A420 |
| Finish / Color | : | Zinc Nickel Coated |
| Maximum Pressure | : | 200 PSI |
| Temperature Rating | : | 14 - 284 DEG F |
| Industry Standards | : | ASTM F3226, IAPMO/ANSI/CAN Z1117 |
| Additional Specifications | : | Suitable For Use With: SCH 5 To SCH 40 Carbon Steel Pipes, Includes: EPDM Sealing Element |
| Weight | : | 1.400 LB |
- Smart connect technology
- For use with SCH 5 to SCH 40 carbon steel pipe
- Carbon steel, zinc-nickel coating
- Press connection
- FKM sealing elements, grip rings, separator rings
