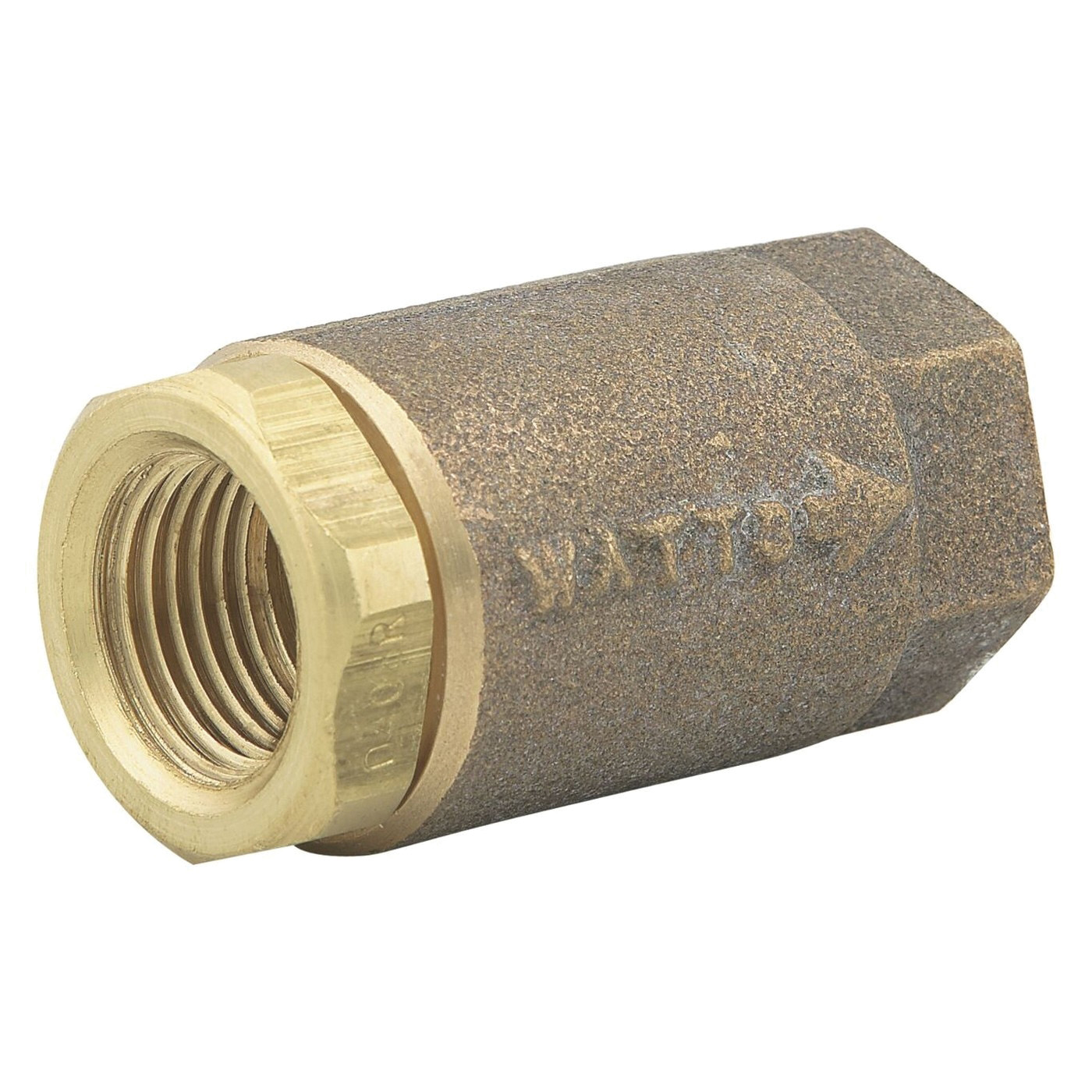

3/8 LF600 SPRING LOADED SILENT CHECK VALVE

This 3/8 IN lead-free Maxi-Flo check valve is used in general industrial and plumbing applications to prevent the effects of water hammer in the piping system. It provides a silent operation with low pressure drop and can be installed horizontally or vertically. This valve consists of a lead-free brass body, lead-free brass check and adapter, conical lead-free brass disc, PTFE seat and threaded end connections. The maximum working pressure rating is 400 PSI (27.6 BAR), WOG non-shock at -20 to 100 DEG F (-29 to 38 DEG C) and 15 PSI (1 BAR) WSP at 250 DEG F (121 DEG C).

Maxi-Flo Spring Loaded Silent Check Valve, Series/Model: Series LF600, Nominal Size: 3/8 IN, Connection Type: FNPT, Pressure Rating: 400 PSI (WOG) Non-Shock At -20 To 100 DEG F, 15 PSI (WSP) At 250 DEG F, Cast Copper Silicon Alloy Body Material, Trim Material: Copper Silicon Alloy Check, Seat Material: PTFE, 2-1/8 IN Width, 1-1/4 IN Height, Lead Free: Yes

• PTFE seat
• Lead-free brass body
• Conical lead-free brass disc
• Silent operation

• Specification Sheet https://macombstage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/Watts_0555174_Specification_Sheet.pdf
• Warranty Information https://macombstage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/Watts_0009108_Warranty_Information.pdf
