1/4 WATTS LF26A 3-50 REGULATOR

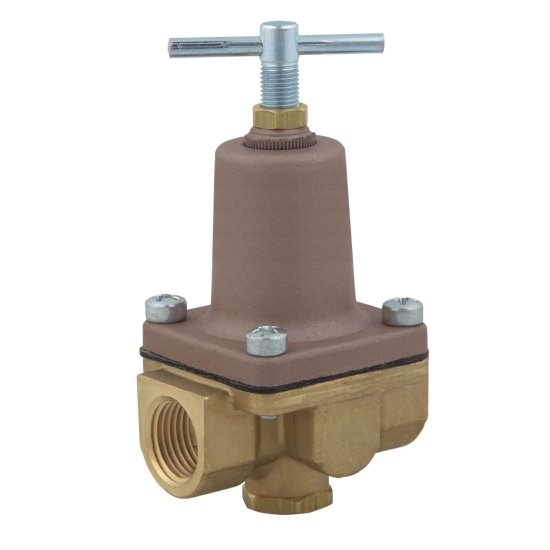

This 1/4 IN lead-free small water pressure regulator is used in small general purpose applications to regulate water pressure in piping systems using water and No. 2 fuel oil. It has an oversized orifice and is ideally used on beverage dispensing and paint spraying equipment, ice cube machines, humidifiers, drinking fountains, and other small process applications. It consists of a lead-free brass body with an adjusting tee handle, NPT threaded female connections, two-way low water pressure gauge port, aluminum spring cage, Buna-N stainless steel disc, and a reinforced Buna-N diaphragm. The reduced water pressure range is 3 - 50 PSI (0.2 - 3.4 BAR) and is factory set at 15 PSI (1 BAR).

Watts Water Pressure Regulator, Type: Small, Water Pressure Regulator, Series/Model: Series LF26A/Model LF26A 3-50, 1/4 IN Nominal, Connection Type: FNPT, 300 PSI, 3 - 50 PSI Pressure Adjustment, 0 - 140 DEG F, Brass Body, Reinforced Buna-N Diaphragm, 2-1/8 IN Width, 4-3/8 IN Height, Industry Standards: NSF Certified To NSF/ANSI-61-G, Additional Specifications: Disc Material: Buna-N Stainless Steel, Spring Cage Material: Aluminum, 1.000 LB Weight

• Lead-free brass body
• Stainless steel stem and spring
• Oversized orifice
• Tee handle adjustment
• NPT threaded female inlet and outlet connections
• Temperature range is 0 to 140 DEG F (-18 to 60 DEG C)
• Maximum working pressure is 300 PSI (21 BAR)
